Sonora Design

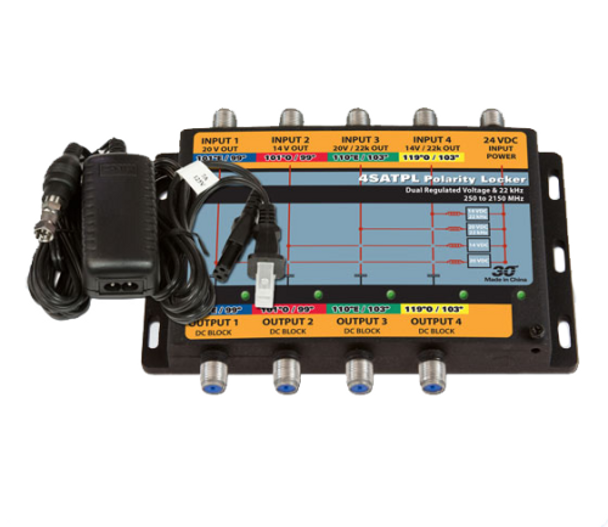

Sonora 4SATPL-T DIRECTV Slimline Ku/Ka Polarity Locker & Power Inserter

UPC:
609465607429
MPN:
4SATPL-T
Condition:
New
Shipping:
Calculated at Checkout
MSRP: $89.99
$74.95
— You save $15.04

Description

DIRECT TV SL5 LNB, 2A power inserted and polarity locker 5 to 2400 MHz, Includes 24V 2 Amp power supply was HRPID1422A

SITUATION

The DIRECTV® (4) polarity SLSP-F SlimLine® dish with SL5 LNB to receiver distance exceeds 100 feet. (Reference SlimLine® installation manual)


SOLUTION

Model 4SATPL-T powers a DIRECTV® SlimLine® dish with strong DC levels and polarity locks the four dish outputs relieving the receivers from powering the LNB.

RELATED CONSIDERATIONS

Splitting the 4SATPL-T output to two switches requires DBS splitters with DC passing to only one port or diode steered splitters. Models HFS-2, HRS-2, HRvS2P or HFS-2D may be used. Color coded jumpers are suggested to be sure the polarities are maintained through the splitters to the switches.
