Holland Electronics

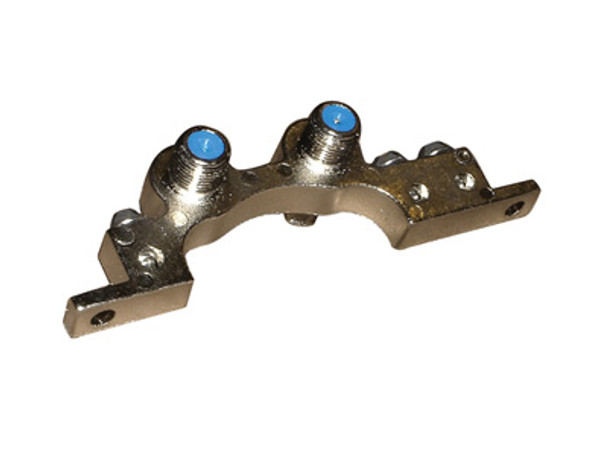

Holland GRB-2THRUL 3GHz Dual Ground Block with 3 Ground Lugs
- MPN:
- GRB-2THRUL
- Availability:
- In Stock
- Shipping:
- Calculated at Checkout
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 10 - 49 | and pay only $0.94 each |
| Buy 50 - 99 | and pay only $0.89 each |
| Buy 100 or above | and pay only $0.85 each |
Description
Holland GRB-2THRUL 3GHz Dual Ground Block with 3 Ground Lugs
Manufacturer Part Number: GRB-2THRUL
Holland Electronics line of Ground Blocks utilize their popular G-F81F to insure the best connection available. Hollands G-F81F is the one of the highest quality F81 adapters available on the market today. Holland's Patented Pin seizure mechanism offers twice the pin contact area and holding force as compared to conventional F splice adapters. This allows for the higher current handling required by newer satellite systems and offers long-term reliability.
Holland Electronics line of Ground Blocks utilize their popular G-F81F to insure the best connection available. Hollands G-F81F is the one of the highest quality F81 adapters available on the market today. Holland's Patented Pin seizure mechanism offers twice the pin contact area and holding force as compared to conventional F splice adapters. This allows for the higher current handling required by newer satellite systems and offers long-term reliability.
Advantages of Holland's Premium Design
DIRECTV & Dish Network Approved
UL Listed
Lower Insertion Loss
Lower Insertion Loss
The G-F81 series has approximately 1/3 the insertion loss of standard splices at higher frequencies. (Savings of over. 5 dB at 2 GHz).
Higher Frequency Operation
The internal air dielectric in combination with the symmetrically round pin provide superior matchingover wide frequencies between DC and 3 GHz.
The internal air dielectric in combination with the symmetrically round pin provide superior matchingover wide frequencies between DC and 3 GHz.
Higher Return Loss
With a return loss of over 35 dB @1 GHz, as compared to 13 dB for standard splices, the G-F81 canassure a higher match resulting in faster digital speeds. The G-F81 series exceeds current SCTE minimumRL levels of 20 dB.
With a return loss of over 35 dB @1 GHz, as compared to 13 dB for standard splices, the G-F81 canassure a higher match resulting in faster digital speeds. The G-F81 series exceeds current SCTE minimumRL levels of 20 dB.
Flat Port Ends
The G-F81F series uses a patented method to provide flat ports ends on both sides meeting the SCTEspecifications of flatness and aperture. Patent # 6,113,431.
The G-F81F series uses a patented method to provide flat ports ends on both sides meeting the SCTEspecifications of flatness and aperture. Patent # 6,113,431.
Round, Multi-Point Seizing Pin
The patented multi-point seizing pin provides a larger contact area than standard, dual flat pin splices. This results in lower contact resistance and thus higher current handling capability when needed, as wellas a greater resistance to long term center conductor oxidation. The patented design also creates a mildwiping action which removes a few microns of oxidation upon insertion.
Beryllium Copper Seizing Pin
The use of the more expensive beryllium copper material for the center conductor seizing pins insures agreater holding force than the traditional phosphor bronze or copper pins used in standard splices. Theadvanced material also maintains a higher spring tension over repetitive insertions.
Accepts a Wider Range of Cable Center Conductors
Due to the greater elastic capability of beryllium copper, the G-F81 series can accept a wider variation incable center conductor sizes and maintains its high strength on the smallest cables even after repetitiveinsertions of the largest cables.
Patented, 7-year Field Proven Design
The patented multi-point seizing pin provides a larger contact area than standard, dual flat pin splices. This results in lower contact resistance and thus higher current handling capability when needed, as wellas a greater resistance to long term center conductor oxidation. The patented design also creates a mildwiping action which removes a few microns of oxidation upon insertion.
Beryllium Copper Seizing Pin
The use of the more expensive beryllium copper material for the center conductor seizing pins insures agreater holding force than the traditional phosphor bronze or copper pins used in standard splices. Theadvanced material also maintains a higher spring tension over repetitive insertions.
Accepts a Wider Range of Cable Center Conductors
Due to the greater elastic capability of beryllium copper, the G-F81 series can accept a wider variation incable center conductor sizes and maintains its high strength on the smallest cables even after repetitiveinsertions of the largest cables.
Patented, 7-year Field Proven Design
